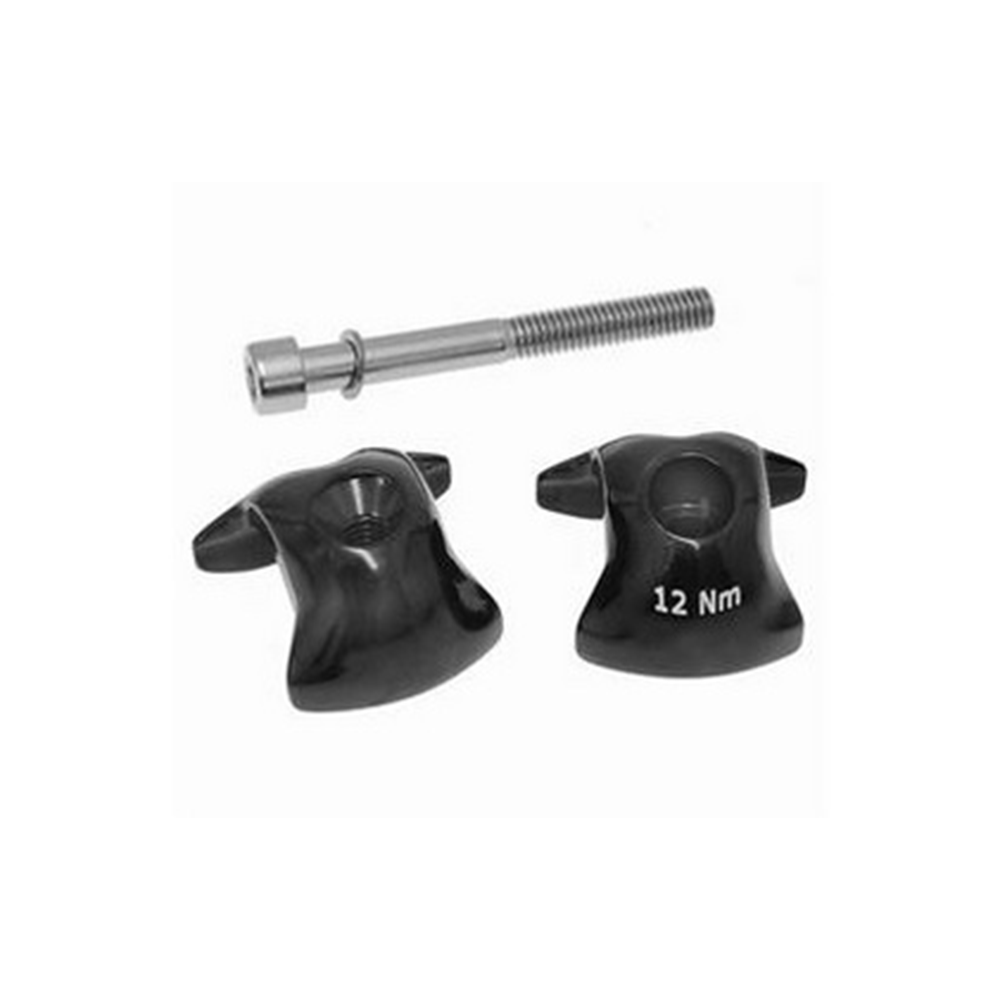

Ritchey WCS Carbon Replacement Clamp 7x9.6 mm.

Ritchey WCS Carbon Replacement Clamp 7x9.6 mm is specifically engineered to handle the technical requirements of modern high-performance saddles with carbon rails. Unlike standard metal rails, which are typically round with a diameter of 7 mm, many manufacturers of carbon saddles use an oval profile to increase strength and reduce weight without compromising the material's integrity. This specific clamp is designed for rails with a dimension of exactly 7x9.6 mm, which are often found on flagship models from brands like Fizik and other specialist manufacturers of high-end cycling equipment. The oval shape requires a precise contact surface, as an incorrectly sized clamp can create unwanted point loads that, in the worst case, can lead to fractures in the expensive carbon fibers. By using this original Ritchey clamp, you ensure that pressure is distributed evenly across the entire surface of the rail, which is crucial for both the safety and durability of your components. The clamp is manufactured from precision-milled 2014 aluminum or a 7050 alloy, guaranteeing a very high tolerance and a perfect fit every time. This is an essential upgrade or spare part for riders switching from traditional saddles to lightweight solutions with carbon rails, as it enables stable and secure integration into the bike's overall cockpit. The two-piece design completely encloses the rail, minimizing the risk of the saddle slipping or creaking during intense riding on both smooth roads and in challenging terrain such as gravel or forest trails.

It is extremely important to note that the Ritchey WCS Carbon Replacement Clamp 7x9.6 mm is a specialized kit developed specifically for Ritchey WCS Carbon 1-bolt seatposts. It is crucial for the user to understand that this clamp is intended for use with the carbon versions of the Ritchey 1-bolt system and is explicitly not compatible with Ritchey WCS 1-bolt seatposts made of aluminum. This distinction is critical, as the geometry and contact surfaces in this retrofit kit are optimized for the carbon tube's specific wall thickness and technical characteristics. The clamp supports several different seatpost diameters, including the most common standards such as 27.2 mm, 31.6 mm, and 34.9 mm, as long as the seatpost head itself utilizes Ritchey's patented 1-bolt system. The brilliance of the system lies in its simplicity, as it allows the rider to make both angle adjustments (tilt) and length adjustments (fore-aft) using just a single centrally located bolt. This makes fine-tuning the seating position significantly faster and more precise than on traditional two-bolt systems. Although the clamp is extremely light with a total weight of only around 40 to 41 grams, structural strength has not been compromised. The precision-machined construction ensures that all forces are transferred correctly from the rider into the seatpost. If you are in doubt about your current seatpost material or mounting system, you should always check the technical specifications before starting the installation, as correct matching is the prerequisite for optimal performance and long-term safety on the bike.

When installing the Ritchey WCS Carbon Replacement Clamp 7x9.6 mm, correct torque is essential to protect both your carbon rails and the seatpost itself from structural damage. As clearly indicated by the product's visual markings on the side of the clamp, the recommended maximum torque is 12 Nm. This specific torque ensures that the two outer cradle plates hold the rail firmly with sufficient pressure to prevent any unwanted movement under load, without overloading the sensitive carbon fibers, which are vulnerable to compression. During installation, ensure that the oval rails are correctly positioned in the precision-machined grooves in the clamp before tightening the bolt. Because carbon is a material that is extremely strong in tension but can be vulnerable to crushing from point loading, this specific 7x9.6 mm design helps distribute the clamping force over a significantly larger area than standard clamps. The package comes as a complete set consisting of two outer plates and the necessary bolt with its associated washer, which forms the core of the 1-bolt mechanism. By following the provided specifications closely and always using a calibrated torque wrench, you can achieve a setup that is both reliable and long-lasting, whether riding in professional road races or on technically demanding gravel routes. The compact and streamlined design also contributes to a clean and aesthetically professional look on the bike, while offering the necessary adjustability to find the ideal saddle angle for maximum comfort. The precise factory tolerance ensures that no annoying play or noise develops in the system over time, which is a crucial factor for rider focus during long and demanding training sessions.
